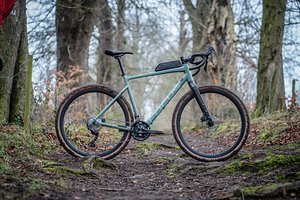

Focus Atlas (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Focus Atlas (2021) | Focus Atlas (2021) | Focus Atlas (2021) | Focus Atlas (2021) | Focus Atlas (2021) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 370 mm | 380 mm | 395 mm | 410 mm | 420 mm |
| Stack | 568 mm | 582 mm | 596 mm | 615 mm | 643 mm |
| STR | 1,54 | 1,53 | 1,51 | 1,50 | 1,53 |
| Reach+ | |||||
| Stack+ | |||||
| Front-Center | |||||
| Head Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat Angle, effective | 74° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Angle, real | |||||
| Top Tube Length | 484 mm | 509 mm | 532 mm | 550 mm | 590 mm |
| Top Tube Length (horizontal) | |||||
| Head Tube Length | 114 mm | 129 mm | 144 mm | 164 mm | 194 mm |
| Seat Tube Length | |||||
| Standover Height | 765 mm | 789 mm | 809 mm | 830 mm | 862 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1.015 mm | 1.030 mm | 1.051 mm | 1.072 mm | 1.092 mm |
| FC2RC | 1,39 | 1,42 | 1,47 | 1,52 | 1,57 |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Bottom Bracket Height | |||||
| Fork installation height | |||||
| Fork offset | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | |||||
| Travel (rear) | |||||
| Travel (front) |
