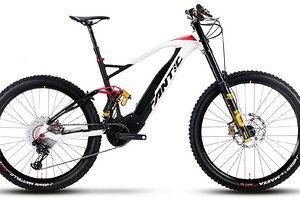

Fantic Integra XXF 2.0 (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Fantic Integra XXF 2.0 (2021) Fantic Integra XXF 2.0 (2021) Fantic Integra XXF 2.0 (2021)
Frame Size/Setup S M L
Typ Mountainbike Mountainbike Mountainbike
Wheel Size Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5
Reach 416 mm 445.5 mm 471.5 mm
Stack 623.7 mm 629.8 mm 640.2 mm
STR 1,50 1,41 1,36
Reach+
Stack+
Front-Center
Head Angle 64° 64° 64.5°
Seat Angle, effective 72° 72° 72°
Seat Angle, real
Top Tube Length 588.5 mm 619 mm 649 mm
Top Tube Length (horizontal)
Head Tube Length 105 mm 110 mm 120 mm
Seat Tube Length 390 mm 430 mm 470 mm
Standover Height
Chainstay Length 458.5 mm 458.5 mm 458.5 mm
Wheelbase 1.226 mm 1.256 mm 1.281 mm
Bottom Bracket Drop
Bottom Bracket Height 368 mm 370 mm 370 mm
Fork installation height
Fork offset
Fork caster
Travel (rear) 200 mm 200 mm 200 mm
Travel (front) 200 mm 200 mm 200 mm
