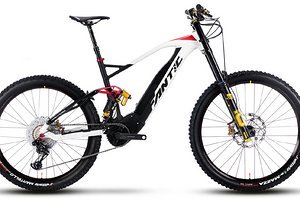

Fantic Integra XTF 1.5 Carbon (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Fantic Integra XTF 1.5 Carbon (2021) | Fantic Integra XTF 1.5 Carbon (2021) | Fantic Integra XTF 1.5 Carbon (2021) | Fantic Integra XTF 1.5 Carbon (2021) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 419 mm | 438 mm | 466 mm | 488 mm |
| Stack | 608 mm | 615.1 mm | 628.9 mm | 645.5 mm |
| STR | 1.45 | 1.40 | 1.35 | 1.32 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 738 mm | 755 mm | 783 mm | 809 mm |
| Frame RAAD | 34.6° | 35.5° | 36.5° | 37.1° |
| Front-Center | ||||
| Head Angle | 66° | 66° | 66.5° | 67° |
| Seat Angle, effective | 73° | 73° | 73° | 73° |
| Seat Angle, real | ||||
| Top Tube Length | 575 mm | 596 mm | 628 mm | 655 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 105 mm | 115 mm | 130 mm | 135 mm |
| Seat Tube Length | 390 mm | 430 mm | 469 mm | 510 mm |
| Standover Height | ||||
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1,188 mm | 1,204 mm | 1,238 mm | 1,260 mm |
| FC2RC | 1.61 | 1.64 | 1.71 | 1.76 |
| Bottom Bracket Drop | ||||
| Bottom Bracket Height | 362.5 mm | 362.5 mm | 362.5 mm | 362.5 mm |
| Fork installation height | ||||
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 150 mm | 150 mm | 150 mm | 150 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm |
