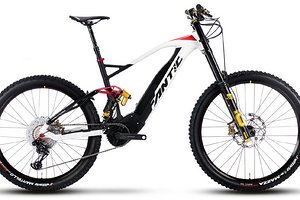

| Modell | Fantic Integra XTF 1.5 (2021) | Fantic Integra XTF 1.5 (2021) | Fantic Integra XTF 1.5 (2021) |
|---|---|---|---|
| Frame Size/Setup | S | M | L |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 407 mm | 433 mm | 453 mm |
| Stack | 615.8 mm | 625 mm | 641.5 mm |
| STR | 1,51 | 1,44 | 1,42 |
| Front-Center | |||
| Head Angle | 66° | 66° | 66.5° |
| Seat Angle, effective | 73° | 73° | 73° |
| Seat Angle, real | |||
| Top Tube Length | 573 mm | 602 mm | 627 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 105 mm | 115 mm | 130 mm |
| Seat Tube Length | 390 mm | 430 mm | 490 mm |
| Standover Height | |||
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1.193 mm | 1.224 mm | 1.244 mm |
| Bottom Bracket Drop | |||
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm |
| Fork installation height | |||
| Fork offset | |||
| Fork caster | |||
| Travel (rear) | 150 mm | 150 mm | 150 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm |
