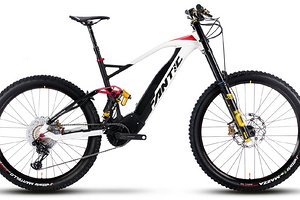

Fantic Integra XMF 1.7 Carbon (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Fantic Integra XMF 1.7 Carbon (2021) Fantic Integra XMF 1.7 Carbon (2021) Fantic Integra XMF 1.7 Carbon (2021)
Frame Size/Setup S M L
Typ Mountainbike Mountainbike Mountainbike
Wheel Size Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5
Reach 390.5 mm 421.5 mm 446 mm
Stack 612.7 mm 620.4 mm 632 mm
STR 1,57 1,47 1,42
Reach+
Stack+
Front-Center
Head Angle 64° 64.5° 64.5°
Seat Angle, effective 71° 71° 71°
Seat Angle, real
Top Tube Length 571.5 mm 606 mm 633 mm
Top Tube Length (horizontal)
Head Tube Length 105 mm 110 mm 120 mm
Seat Tube Length 390 mm 440 mm 490 mm
Standover Height
Chainstay Length 461 mm 461 mm 461 mm
Wheelbase 1.195 mm 1.224 mm 1.246 mm
Bottom Bracket Drop
Bottom Bracket Height 361.5 mm 361.5 mm 361.5 mm
Fork installation height
Fork offset
Fork caster
Travel (rear) 170 mm 170 mm 170 mm
Travel (front) 170 mm 170 mm 170 mm
