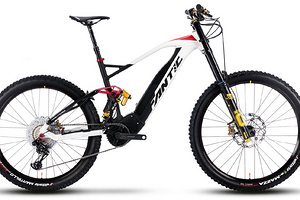

Fantic Integra XEF 1.9 (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Fantic Integra XEF 1.9 (2021) | Fantic Integra XEF 1.9 (2021) | Fantic Integra XEF 1.9 (2021) |
|---|---|---|---|
| Frame Size/Setup | S | M | L |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 | Mullet 29/27,5 | Mullet 29/27,5 |
| Reach | 414 mm | 443 mm | 469 mm |
| Stack | 625.6 mm | 630 mm | 642.1 mm |
| STR | 1,51 | 1,42 | 1,37 |
| Reach+ | |||
| Stack+ | |||
| Front-Center | |||
| Head Angle | 64° | 64° | 64.5° |
| Seat Angle, effective | 72° | 72° | 72° |
| Seat Angle, real | |||
| Top Tube Length | 590 mm | 620 mm | 650 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Seat Tube Length | 390 mm | 430 mm | 470 mm |
| Standover Height | |||
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1.226 mm | 1.256 mm | 1.281 mm |
| Bottom Bracket Drop | |||
| Bottom Bracket Height | 364 mm | 364 mm | 364 mm |
| Fork installation height | |||
| Fork offset | |||
| Fork caster | |||
| Travel (rear) | 190 mm | 190 mm | 190 mm |
| Travel (front) | 190 mm | 190 mm | 190 mm |
