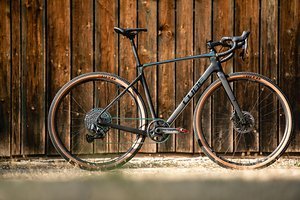

Cube Nuroad C:62 (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Cube Nuroad C:62 (2021) | Cube Nuroad C:62 (2021) | Cube Nuroad C:62 (2021) | Cube Nuroad C:62 (2021) | Cube Nuroad C:62 (2021) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 380.7 mm | 386 mm | 389 mm | 392 mm | 401.6 mm |
| Stack | 519.6 mm | 544 mm | 578 mm | 599 mm | 622.6 mm |
| STR | 1,36 | 1,41 | 1,49 | 1,53 | 1,55 |
| Reach+ | |||||
| Stack+ | |||||
| Front-Center | |||||
| Head Angle | 69° | 70° | 71.5° | 72° | 72.5° |
| Seat Angle, effective | 75.2° | 74.5° | 73.5° | 73° | 73° |
| Seat Angle, real | |||||
| Top Tube Length | 518 mm | 537 mm | 560 mm | 575 mm | 592 mm |
| Top Tube Length (horizontal) | |||||
| Head Tube Length | 102 mm | 124 mm | 154 mm | 174 mm | 197 mm |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Standover Height | |||||
| Chainstay Length | 439.5 mm | 439.5 mm | 439.5 mm | 439.5 mm | 439.5 mm |
| Wheelbase | 1.041 mm | 1.041 mm | 1.041 mm | 1.046 mm | 1.058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom Bracket Height | |||||
| Fork installation height | |||||
| Fork offset | |||||
| Trail | |||||
| Travel (rear) | |||||
| Travel (front) |
