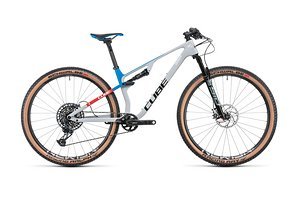

Cube AMS One11 (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Cube AMS One11 (2022) | Cube AMS One11 (2022) | Cube AMS One11 (2022) | Cube AMS One11 (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 401.33 mm 399.98 mm | 423.32 mm 422.04 mm | 445.32 mm 444.09 mm | 465.68 mm 464.53 mm |
| Stack | 591.95 mm 593.57 mm | 601.44 mm 603.14 mm | 610.91 mm 612.7 mm | 624.97 mm 626.84 mm |
| STR | 1,47 1,48 | 1,42 1,43 | 1,37 1,38 | 1,34 1,35 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 66.03° 66.64° | 66.06° 66.67° | 66.08° 66.69° | 66.11° 66.72° |
| Seat Angle, effective | 73.33° 73.14° | 73.36° 73.17° | 73.38° 73.19° | 73.41° 73.22° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 573.22 mm 574.64 mm | 598.22 mm 599.73 mm | 623.22 mm 624.81 mm | 648.17 mm 649.9 mm |
| Head Tube Length | 100 mm 100 mm | 110 mm 110 mm | 120 mm 120 mm | 135 mm 135 mm |
| Seat Tube Length | 370 mm 370 mm | 420 mm 420 mm | 470 mm 470 mm | 520 mm 520 mm |
| Standover Height | ||||
| Chainstay Length | 444.5 mm 444.5 mm | 444.5 mm 444.5 mm | 444.5 mm 444.5 mm | 444.5 mm 444.5 mm |
| Wheelbase | 1.141 mm 1.134 mm | 1.167 mm 1.159 mm | 1.192 mm 1.185 mm | 1.219 mm 1.211 mm |
| Bottom Bracket Drop | 32.94 mm 31.45 mm | 33.15 mm 31.68 mm | 33.35 mm 31.91 mm | 33.55 mm 32.13 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | ||||
| Travel (front) |
