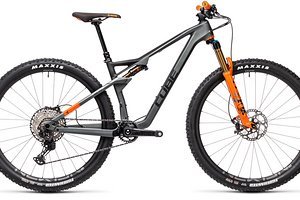

Cube AMS 100 C:68 TM 29 (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Cube AMS 100 C:68 TM 29 (2021) Cube AMS 100 C:68 TM 29 (2021) Cube AMS 100 C:68 TM 29 (2021) Cube AMS 100 C:68 TM 29 (2021)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″
Reach 391 mm 414 mm 434 mm 454 mm
Stack 599 mm 609 mm 618 mm 628 mm
STR 1,53 1,47 1,42 1,38
Reach+
Stack+
Front-Center
Head Angle 68.7° 68.7° 68.7° 68.7°
Seat Angle, effective 73.2° 73.2° 73.2° 73.2°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 569 mm 594 mm 617 mm 640 mm
Head Tube Length 97 mm 107 mm 117 mm 127 mm
Seat Tube Length 370 mm 420 mm 470 mm 520 mm
Standover Height 750 mm 748 mm 749 mm 753 mm
Chainstay Length 443 mm 443 mm 443 mm 443 mm
Wheelbase 1.109 mm 1.134 mm 1.158 mm 1.181 mm
Bottom Bracket Drop 32 mm 32 mm 32 mm 32 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear) 100 mm 100 mm 100 mm 100 mm
Travel (front) 100 mm 100 mm 100 mm 100 mm
