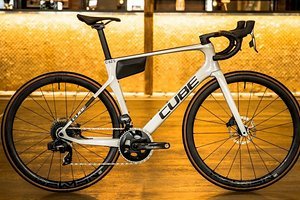

Cube Agree C:62 (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Cube Agree C:62 (2022) | Cube Agree C:62 (2022) | Cube Agree C:62 (2022) | Cube Agree C:62 (2022) | Cube Agree C:62 (2022) | Cube Agree C:62 (2022) |
|---|---|---|---|---|---|---|
| Frame Size/Setup | 50 | 53 | 56 | 58 | 60 | 62 |
| Typ | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 378 mm | 382.6 mm | 390.6 mm | 394.3 mm | 398.9 mm | 402 mm |
| Stack | 522.8 mm | 543.5 mm | 571.7 mm | 591 mm | 606.2 mm | 628.1 mm |
| STR | 1,38 | 1,42 | 1,46 | 1,50 | 1,52 | 1,56 |
| Reach+ | ||||||
| Stack+ | ||||||
| Front-Center | ||||||
| Head Angle | 71.5° | 72° | 72.5° | 72.5° | 72.5° | 72.5° |
| Seat Angle, effective | ||||||
| Seat Angle, real | 74.6° | 74° | 73.5° | 73° | 72.5° | 72.5° |
| Top Tube Length | ||||||
| Top Tube Length (horizontal) | 522 mm | 538.5 mm | 560 mm | 575 mm | 590 mm | 600 mm |
| Head Tube Length | 107 mm | 127 mm | 157 mm | 177 mm | 195 mm | 218 mm |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Standover Height | ||||||
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 986.7 mm | 993.6 mm | 1.007 mm | 1.017 mm | 1.027 mm | 1.037 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 72.5 mm | 71 mm | 69 mm | 69 mm |
| Bottom Bracket Height | ||||||
| Fork installation height | ||||||
| Fork offset | ||||||
| Fork caster | ||||||
| Travel (rear) | ||||||
| Travel (front) |
