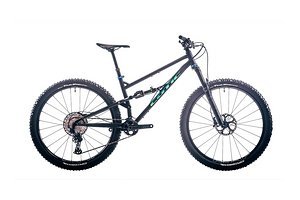

Cotic FlareMax Gen4 130 mm Federgabel (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Cotic FlareMax Gen4 130 mm Federgabel (2021) | Cotic FlareMax Gen4 130 mm Federgabel (2021) | Cotic FlareMax Gen4 130 mm Federgabel (2021) | Cotic FlareMax Gen4 130 mm Federgabel (2021) |
|---|---|---|---|---|
| Frame Size/Setup | XL | Large | Medium | Small |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 515 mm | 490 mm | 467.5 mm | 444 mm |
| Stack | 636.6 mm | 627.4 mm | 618.3 mm | 609.2 mm |
| STR | 1,24 | 1,28 | 1,32 | 1,37 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 65.6° | 65.6° | 65.6° | 65.6° |
| Seat Angle, effective | 75.1° | 75.1° | 75.1° | 75.1° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 676 mm | 648 mm | 623 mm | 596 mm |
| Head Tube Length | 130 mm | 120 mm | 110 mm | 100 mm |
| Seat Tube Length | 495 mm | 460 mm | 425 mm | 390 mm |
| Standover Height | ||||
| Chainstay Length | 447.5 mm | 447.5 mm | 447.5 mm | 447.5 mm |
| Wheelbase | 1.284 mm | 1.255 mm | 1.228 mm | 1.200 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | 124 mm | 124 mm | 124 mm | 124 mm |
| Travel (front) | 130 mm | 130 mm | 130 mm | 130 mm |
