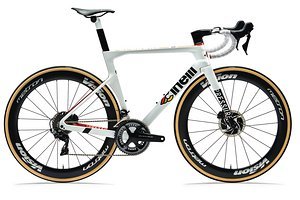

Cinelli Pressure (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Cinelli Pressure (2021) | Cinelli Pressure (2021) | Cinelli Pressure (2021) | Cinelli Pressure (2021) | Cinelli Pressure (2021) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 366 mm | 374 mm | 385 mm | 394 mm | 403 mm |
| Stack | 512 mm | 528 mm | 539 mm | 560 mm | 581 mm |
| STR | 1,40 | 1,41 | 1,40 | 1,42 | 1,44 |
| Reach+ | |||||
| Stack+ | |||||
| Front-Center | |||||
| Head Angle | 71° | 71.5° | 72° | 72.5° | 73° |
| Seat Angle, effective | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Angle, real | |||||
| Top Tube Length | 518 mm | 530 mm | 545 mm | 560 mm | 575 mm |
| Top Tube Length (horizontal) | |||||
| Head Tube Length | 110 mm | 125 mm | 135 mm | 155 mm | 175 mm |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 560 mm |
| Standover Height | |||||
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 971 mm | 979 mm | 990 mm | 1.001 mm | 1.011 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | |
| Bottom Bracket Height | |||||
| Fork installation height | 374 mm | 374 mm | 374 mm | 374 mm | 374 mm |
| Fork offset | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | |||||
| Travel (rear) | |||||
| Travel (front) |
