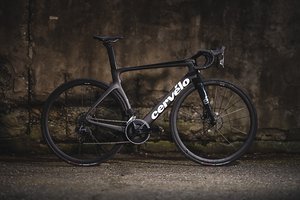

Cervelo S5 (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Cervelo S5 (2022) Cervelo S5 (2022) Cervelo S5 (2022) Cervelo S5 (2022) Cervelo S5 (2022)
Frame Size/Setup 48 51 54 56 58
Typ Rennrad Rennrad Rennrad Rennrad Rennrad
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 367 mm 376 mm 384 mm 392 mm 401 mm
Stack 496 mm 519 mm 542 mm 565 mm 588 mm
STR 1,35 1,38 1,41 1,44 1,47
Front-Center 579 mm 580 mm 581 mm 588 mm 604 mm
Head Angle 71° 72° 73° 73.5° 73.5°
Seat Angle, effective
Seat Angle, real 73° 73° 73° 73° 73°
Top Tube Length
Top Tube Length (horizontal) 520 mm 535 mm 550 mm 565 mm 581 mm
Head Tube Length 69 mm 87 mm 109 mm 130 mm 157 mm
Seat Tube Length
Standover Height 707.5 mm 730 mm 745 mm 775 mm 805 mm
Chainstay Length 405 mm 405 mm 405 mm 405 mm 405 mm
Wheelbase 973 mm 974 mm 975 mm 982 mm 999 mm
Bottom Bracket Drop 72.5 mm 72.5 mm 70 mm 70 mm 70 mm
Bottom Bracket Height
Fork installation height
Fork offset 58 mm 52 mm 46 mm 43 mm 43 mm
Fork caster 57.1 mm 57 mm 57.1 mm 57 mm 57 mm
Travel (rear)
Travel (front)
