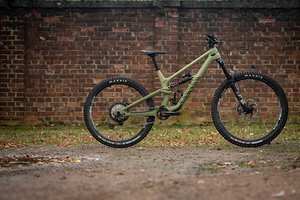

Canyon Torque 29" (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Canyon Torque 29" (2022) | Canyon Torque 29" (2022) | Canyon Torque 29" (2022) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 465 mm 465 mm | 490 mm 490 mm | 515 mm 515 mm |
| Stack | 629 mm 629 mm | 638 mm 638 mm | 647 mm 647 mm |
| STR | 1.35 1.35 | 1.30 1.30 | 1.26 1.26 |
| Reach+ | |||
| Stack+ | |||
| Frame RAD | 782 mm 782 mm | 804 mm 804 mm | 827 mm 827 mm |
| Frame RAAD | 36.5° 36.5° | 37.5° 37.5° | 38.5° 38.5° |
| Front-Center | |||
| Head Angle | 63.5° 64° | 63.5° 64° | 63.5° 64° |
| Seat Angle, effective | 77.5° 78° | 77.5° 78° | 77.5° 78° |
| Seat Angle, real | |||
| Top Tube Length | |||
| Top Tube Length (horizontal) | 604 mm 604 mm | 631 mm 631 mm | 658 mm 658 mm |
| Head Tube Length | 105 mm 105 mm | 115 mm 115 mm | 125 mm 125 mm |
| Seat Tube Length | 430 mm 430 mm | 445 mm 445 mm | 460 mm 460 mm |
| Standover Height | |||
| Chainstay Length | 440 mm 440 mm | 440 mm 440 mm | 440 mm 440 mm |
| Wheelbase | 1,252 mm 1,252 mm | 1,282 mm 1,282 mm | 1,311 mm 1,311 mm |
| FC2RC | 1.85 1.85 | 1.91 1.91 | 1.98 1.98 |
| Bottom Bracket Drop | 30 mm 30 mm | 30 mm 30 mm | 30 mm 30 mm |
| Bottom Bracket Height | |||
| Fork installation height | |||
| Fork offset | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm |
| Trail | |||
| Travel (rear) | 170 mm 170 mm | 170 mm 170 mm | 170 mm 170 mm |
| Travel (front) | 170 mm 170 mm | 170 mm 170 mm | 170 mm 170 mm |
