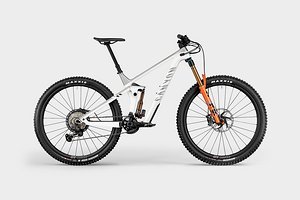

Canyon Strive (2019) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Canyon Strive (2019) Canyon Strive (2019) Canyon Strive (2019) Canyon Strive (2019)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 415 mm 415 mm 440 mm 440 mm 470 mm 470 mm 500 mm 500 mm
Stack 626 mm 626 mm 631 mm 631 mm 640 mm 640 mm 658 mm 658 mm
STR 1,51 1,51 1,43 1,43 1,36 1,36 1,32 1,32
Reach+
Stack+
Front-Center
Head Angle 66° 67.5° 66° 67.5° 66° 67.5° 66° 67.5°
Seat Angle, effective 73.5° 75° 73.5° 75° 73.5° 75° 73.5° 75°
Seat Angle, real 0° 0° 0° 0° 0° 0° 0° 0°
Top Tube Length 600 mm 600 mm 627 mm 627 mm 660 mm 660 mm 695 mm 695 mm
Top Tube Length (horizontal)
Head Tube Length 95 mm 95 mm 100 mm 100 mm 110 mm 110 mm 130 mm 130 mm
Seat Tube Length 400 mm 400 mm 440 mm 440 mm 455 mm 455 mm 500 mm 500 mm
Standover Height
Chainstay Length 435 mm 435 mm 435 mm 435 mm 435 mm 435 mm 435 mm 435 mm
Wheelbase 1.169 mm 1.169 mm 1.196 mm 1.196 mm 1.230 mm 1.230 mm 1.268 mm 1.268 mm
Bottom Bracket Drop 36 mm 36 mm 36 mm 36 mm 36 mm 36 mm 36 mm 36 mm
Bottom Bracket Height 336 mm 336 mm 336 mm 336 mm 336 mm 336 mm 336 mm 336 mm
Fork installation height 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm
Fork offset
Fork caster
Travel (rear)
Travel (front)
