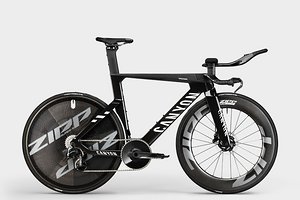

Canyon Speedmax CFR TT Disc (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Canyon Speedmax CFR TT Disc (2021) | Canyon Speedmax CFR TT Disc (2021) | Canyon Speedmax CFR TT Disc (2021) |
|---|---|---|---|
| Frame Size/Setup | S | M | L |
| Typ | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 417 mm | 435 mm | 458 mm |
| Stack | 472 mm | 496 mm | 530 mm |
| STR | 1,13 | 1,14 | 1,16 |
| Reach+ | |||
| Stack+ | |||
| Front-Center | |||
| Head Angle | 73° | 73° | 73° |
| Seat Angle, effective | |||
| Seat Angle, real | 80.5° | 80.5° | 80.5° |
| Top Tube Length | 496 mm | 518 mm | 546 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 65 mm | 91 mm | 126 mm |
| Seat Tube Length | 518 mm | 540 mm | 570 mm |
| Standover Height | |||
| Chainstay Length | 420 mm | 420 mm | 420 mm |
| Wheelbase | 988 mm | 1.014 mm | 1.047 mm |
| Bottom Bracket Drop | |||
| Bottom Bracket Height | |||
| Fork installation height | |||
| Fork offset | |||
| Fork caster | |||
| Travel (rear) | |||
| Travel (front) |
