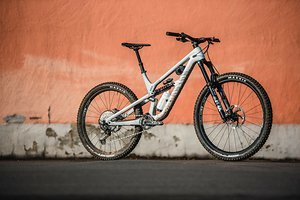

Canyon Spectral Mullet (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Canyon Spectral Mullet (2022) | Canyon Spectral Mullet (2022) | Canyon Spectral Mullet (2022) | Canyon Spectral Mullet (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 |
| Reach | 435 mm 435 mm | 460 mm 460 mm | 485 mm 485 mm | 510 mm 510 mm |
| Stack | 610 mm 610 mm | 619 mm 619 mm | 628 mm 628 mm | 637 mm 637 mm |
| STR | 1,40 1,40 | 1,35 1,35 | 1,29 1,29 | 1,25 1,25 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 64° 64.5° | 64° 64.5° | 64° 64.5° | 64° 64.5° |
| Seat Angle, effective | 76° 76.5° | 76° 76.5° | 76° 76.7° | 76° 76.5° |
| Seat Angle, real | ||||
| Top Tube Length | 582 mm 582 mm | 609 mm 609 mm | 636 mm 636 mm | 663 mm 663 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 95 mm 95 mm | 105 mm 105 mm | 115 mm 115 mm | 125 mm 125 mm |
| Seat Tube Length | 395 mm 395 mm | 430 mm 430 mm | 460 mm 460 mm | 490 mm 490 mm |
| Standover Height | ||||
| Chainstay Length | 432 mm 432 mm | 432 mm 432 mm | 432 mm 432 mm | 432 mm 432 mm |
| Wheelbase | 1.195 mm 1.195 mm | 1.224 mm 1.224 mm | 1.253 mm 1.253 mm | 1.283 mm 1.283 mm |
| Bottom Bracket Drop | 28 mm 36 mm | 28 mm 36 mm | 28 mm 36 mm | 28 mm 36 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | 150 mm 150 mm | 150 mm 150 mm | 150 mm 150 mm | 150 mm 150 mm |
| Travel (front) | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm |
