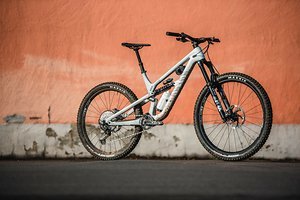

Canyon Spectral 27,5" (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Canyon Spectral 27,5" (2022) | Canyon Spectral 27,5" (2022) | Canyon Spectral 27,5" (2022) | Canyon Spectral 27,5" (2022) |
|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 27,5″ / 650B 27,5″ / 650B | 27,5″ / 650B 27,5″ / 650B | 27,5″ / 650B 27,5″ / 650B | 27,5″ / 650B 27,5″ / 650B |
| Reach | 410 mm 410 mm | 435 mm 435 mm | 460 mm 460 mm | 485 mm 485 mm |
| Stack | 595 mm 595 mm | 613 mm 613 mm | 622 mm 622 mm | 631 mm 631 mm |
| STR | 1,45 1,45 | 1,41 1,41 | 1,35 1,35 | 1,30 1,30 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 64° 64.5° | 64° 64.5° | 64° 64.5° | 64° 64.5° |
| Seat Angle, effective | 76° 76.5° | 76° 76.5° | 76° 76.5° | 76° 76.7° |
| Seat Angle, real | ||||
| Top Tube Length | 582 mm 582 mm | 609 mm 609 mm | 636 mm 636 mm | |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 105 mm 105 mm | 125 mm 125 mm | 135 mm 135 mm | 145 mm 145 mm |
| Seat Tube Length | 395 mm 395 mm | 430 mm 430 mm | 460 mm 460 mm | |
| Standover Height | ||||
| Chainstay Length | 432 mm 432 mm | 432 mm 432 mm | 432 mm 432 mm | 432 mm 432 mm |
| Wheelbase | 1.165 mm 1.165 mm | 1.195 mm 1.195 mm | 1.224 mm 1.224 mm | 1.253 mm 1.253 mm |
| Bottom Bracket Drop | 28 mm 36 mm | 28 mm 36 mm | 28 mm 36 mm | 28 mm 36 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | 150 mm 150 mm | 150 mm 150 mm | 150 mm 150 mm | 150 mm 150 mm |
| Travel (front) | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm |
