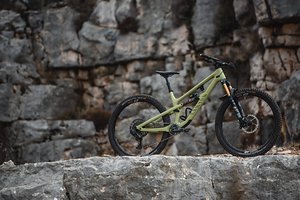

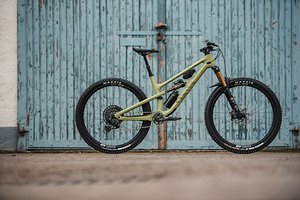

Canyon Spectral 125 (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Canyon Spectral 125 (2022) | Canyon Spectral 125 (2022) | Canyon Spectral 125 (2022) | Canyon Spectral 125 (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 435 mm 435 mm | 460 mm 460 mm | 486 mm 486 mm | 511 mm 511 mm |
| Stack | 613 mm 613 mm | 622 mm 622 mm | 632 mm 632 mm | 641 mm 641 mm |
| STR | 1.41 1.41 | 1.35 1.35 | 1.30 1.30 | 1.25 1.25 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 752 mm 752 mm | 774 mm 774 mm | 797 mm 797 mm | 820 mm 820 mm |
| Frame RAAD | 35.4° 35.4° | 36.5° 36.5° | 37.6° 37.6° | 38.6° 38.6° |
| Front-Center | ||||
| Head Angle | 64° 64.5° | 64° 64.5° | 64° 64.5° | 64° 64.5° |
| Seat Angle, effective | 76° 76.5° | 76° 76.5° | 76° 76.5° | 76° 76.5° |
| Seat Angle, real | ||||
| Top Tube Length | 587 mm 587 mm | 611 mm 611 mm | 636 mm 636 mm | 660 mm 660 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 110 mm 110 mm | 120 mm 120 mm | 130 mm 130 mm | 140 mm 140 mm |
| Seat Tube Length | 395 mm 395 mm | 420 mm 420 mm | 435 mm 435 mm | 460 mm 460 mm |
| Standover Height | 756 mm 756 mm | 762 mm 762 mm | 763 mm 763 mm | 768 mm 768 mm |
| Chainstay Length | 437 mm 437 mm | 437 mm 437 mm | 437 mm 437 mm | 437 mm 437 mm |
| Wheelbase | 1,200 mm 1,200 mm | 1,230 mm 1,230 mm | 1,259 mm 1,259 mm | 1,288 mm 1,288 mm |
| FC2RC | 1.75 1.75 | 1.81 1.81 | 1.88 1.88 | 1.95 1.95 |
| Bottom Bracket Drop | 35 mm 27 mm | 35 mm 27 mm | 35 mm 27 mm | 35 mm 27 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 125 mm 125 mm | 125 mm 125 mm | 125 mm 125 mm | 125 mm 125 mm |
| Travel (front) | 140 mm 140 mm | 140 mm 140 mm | 140 mm 140 mm | 140 mm 140 mm |
