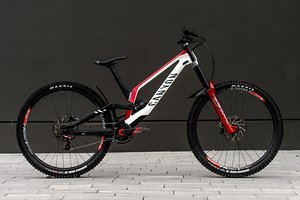

Canyon Sender CF (2021) - Geometry

The table can be moved.

Modell	Canyon Sender CF (2021)	Canyon Sender CF (2021)	Canyon Sender CF (2021)	Canyon Sender CF (2021)
Frame Size/Setup	S	M	L	XL
	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail
Typ	Mountainbike	Mountainbike	Mountainbike	Mountainbike
Wheel Size	Mullet 29/27,5 Mullet 29/27,5	Mullet 29/27,5 Mullet 29/27,5	29″ 29″	29″ 29″
Reach	435 mm 435 mm	460 mm 460 mm	485 mm 485 mm	510 mm 510 mm
Stack	617 mm 617 mm	622 mm 622 mm	631 mm 631 mm	635 mm 635 mm
STR	1,42 1,42	1,35 1,35	1,30 1,30	1,25 1,25
Reach+
Stack+
Front-Center
Head Angle	63° 63°	63° 63°	63° 63°	63° 63°
Seat Angle, effective	78.5° 78.5°	78.5° 78.5°	78° 78°	78° 78°
Seat Angle, real	60° 60°	60° 60°	60.5° 60.5°	60.5° 60.5°
Top Tube Length	597 mm 597 mm	625 mm 625 mm	650 mm 650 mm	672 mm 672 mm
Top Tube Length (horizontal)
Head Tube Length	95 mm 95 mm	100 mm 100 mm	110 mm 110 mm	115 mm 115 mm
Seat Tube Length	400 mm 400 mm	400 mm 400 mm	420 mm 420 mm	440 mm 440 mm
Standover Height	739 mm 739 mm	743 mm 743 mm	747 mm 747 mm	752 mm 752 mm
Chainstay Length	435 mm 445 mm	435 mm 445 mm	445 mm 455 mm	445 mm 455 mm
Wheelbase	1.239 mm 1.249 mm	1.266 mm 1.276 mm	1.305 mm 1.315 mm	1.333 mm 1.343 mm
Bottom Bracket Drop	4 mm 4 mm	4 mm 4 mm	21 mm 21 mm	21 mm 21 mm
Bottom Bracket Height	352 mm 352 mm	352 mm 352 mm	352 mm 352 mm	352 mm 352 mm
Fork installation height
Fork offset
Fork caster
Travel (rear)	200 mm 200 mm	200 mm 200 mm	200 mm 200 mm	200 mm 200 mm
Travel (front)	200 mm 200 mm	200 mm 200 mm	200 mm 200 mm	200 mm 200 mm
