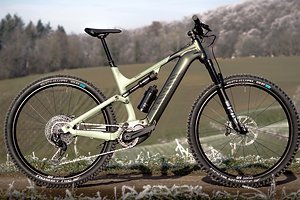

Canyon Neuron:On (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Canyon Neuron:On (2022) Canyon Neuron:On (2022) Canyon Neuron:On (2022) Canyon Neuron:On (2022) Canyon Neuron:On (2022)
Frame Size/Setup XS S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 27,5″ / 650B 27,5″ / 650B 29″ 29″ 29″
Reach 405 mm 425 mm 435 mm 455 mm 475 mm
Stack 584 mm 607 mm 625 mm 634 mm 644 mm
STR 1,44 1,43 1,44 1,39 1,36
Reach+
Stack+
Front-Center
Head Angle 66.5° 66.5° 67.5° 67.5° 67.5°
Seat Angle, effective 75° 75° 74.5° 74.5° 74.5°
Seat Angle, real
Top Tube Length 551 mm 559 mm 596 mm 617 mm 638 mm
Top Tube Length (horizontal)
Head Tube Length 100 mm 100 mm 120 mm 130 mm 140 mm
Seat Tube Length 380 mm 420 mm 440 mm 480 mm 520 mm
Standover Height 766 mm 772 mm 798 mm 800 mm 808 mm
Chainstay Length 435 mm 435 mm 440 mm 440 mm 440 mm
Wheelbase 1.128 mm 1.148 mm 1.174 mm 1.197 mm 1.221 mm
Bottom Bracket Drop 20 mm 20 mm 33 mm 33 mm 33 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear) 130 mm 130 mm 130 mm 130 mm 130 mm
Travel (front) 120 mm 120 mm 130 mm 130 mm 130 mm
