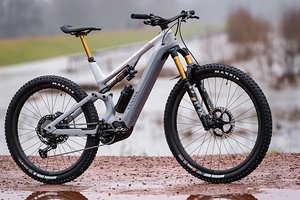

Canyon Neuron:ON (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Canyon Neuron:ON (2021) | Canyon Neuron:ON (2021) | Canyon Neuron:ON (2021) | Canyon Neuron:ON (2021) | Canyon Neuron:ON (2021) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 27,5″ / 650B | 27,5″ / 650B | 29″ | 29″ | 29″ |
| Reach | 405 mm | 425 mm | 435 mm | 455 mm | 475 mm |
| Stack | 584 mm | 607 mm | 625 mm | 634 mm | 644 mm |
| STR | 1,44 | 1,43 | 1,44 | 1,39 | 1,36 |
| Reach+ | |||||
| Stack+ | |||||
| Front-Center | |||||
| Head Angle | 66.5° | 66.5° | 67.5° | 67.5° | 67.5° |
| Seat Angle, effective | 75° | 75° | 74.5° | 74.5° | 74.5° |
| Seat Angle, real | |||||
| Top Tube Length | 561 mm | 559 mm | 596 mm | 617 mm | 638 mm |
| Top Tube Length (horizontal) | |||||
| Head Tube Length | 100 mm | 100 mm | 120 mm | 130 mm | 140 mm |
| Seat Tube Length | 380 mm | 420 mm | 440 mm | 480 mm | 520 mm |
| Standover Height | 766 mm | 772 mm | 798 mm | 800 mm | 808 mm |
| Chainstay Length | 435 mm | 435 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1.128 mm | 1.148 mm | 1.174 mm | 1.197 mm | 1.221 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 33 mm | 33 mm | 33 mm |
| Bottom Bracket Height | |||||
| Fork installation height | |||||
| Fork offset | |||||
| Fork caster | |||||
| Travel (rear) | 125 mm | 125 mm | 130 mm | 130 mm | 130 mm |
| Travel (front) | 120 mm | 120 mm | 130 mm | 130 mm | 130 mm |
