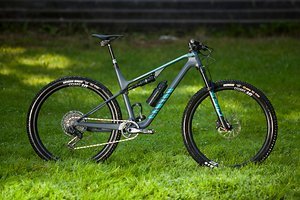

Canyon Lux Trail (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Canyon Lux Trail (2022) | Canyon Lux Trail (2022) | Canyon Lux Trail (2022) | Canyon Lux Trail (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 440 mm | 460 mm | 480 mm | 500 mm |
| Stack | 591 mm | 600 mm | 614 mm | 628 mm |
| STR | 1,34 | 1,30 | 1,28 | 1,26 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| Seat Angle, effective | 74.5° | 74.5° | 74.5° | 74.5° |
| Seat Angle, real | ||||
| Top Tube Length | 604 mm | 627 mm | 650 mm | 674 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 545 mm |
| Standover Height | 790 mm | 794 mm | 797 mm | 809 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1.152 mm | 1.176 mm | 1.201 mm | 1.227 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork caster | ||||
| Travel (rear) | 110 mm | 110 mm | 110 mm | 110 mm |
| Travel (front) | 120 mm | 120 mm | 120 mm | 120 mm |
