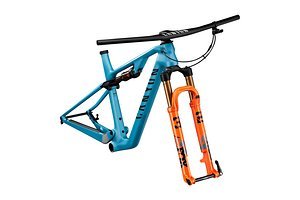

Canyon Lux CF SLX Frameset MVDP (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Canyon Lux CF SLX Frameset MVDP (2021) | Canyon Lux CF SLX Frameset MVDP (2021) | Canyon Lux CF SLX Frameset MVDP (2021) |
|---|---|---|---|
| Frame Size/Setup | S | M | L |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 415 mm | 435 mm | 455 mm |
| Stack | 582 mm | 591 mm | 605 mm |
| STR | 1.40 | 1.36 | 1.33 |
| Reach+ | |||
| Stack+ | |||
| Frame RAD | 715 mm | 734 mm | 757 mm |
| Frame RAAD | 35.5° | 36.4° | 36.9° |
| Front-Center | |||
| Head Angle | 70° | 70° | 70° |
| Seat Angle, effective | 74.5° | 74.5° | 74.5° |
| Seat Angle, real | |||
| Top Tube Length | 576 mm | 599 mm | 623 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 90 mm | 100 mm | 115 mm |
| Seat Tube Length | 425 mm | 465 mm | 505 mm |
| Standover Height | 786 mm | 789 mm | 796 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1,102 mm | 1,126 mm | 1,151 mm |
| FC2RC | 1.53 | 1.59 | 1.65 |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Bottom Bracket Height | |||
| Fork installation height | 504 mm | 504 mm | 504 mm |
| Fork offset | 44 mm | 44 mm | 44 mm |
| Trail | |||
| Travel (rear) | 100 mm | 100 mm | 100 mm |
| Travel (front) | 100 mm | 100 mm | 100 mm |
