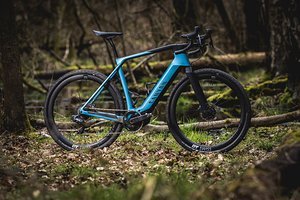

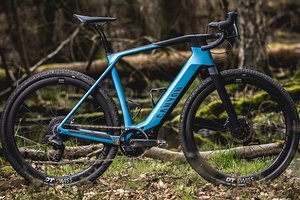

Canyon Grail:ON (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Canyon Grail:ON (2021) Canyon Grail:ON (2021) Canyon Grail:ON (2021) Canyon Grail:ON (2021) Canyon Grail:ON (2021) Canyon Grail:ON (2021) Canyon Grail:ON (2021)
Frame Size/Setup 2XS XS S M L XL 2XL
Typ Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike
Wheel Size 27,5″ / 650B 27,5″ / 650B 27,5″ / 650B 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 392 mm 406 mm 409 mm 411 mm 413 mm 431 mm 434 mm
Stack 512 mm 524 mm 541 mm 561 mm 582 mm 605 mm 628 mm
STR 1,31 1,29 1,32 1,36 1,41 1,40 1,45
Reach+
Stack+
Front-Center
Head Angle 70° 70.75° 71.5° 71.5° 71.75° 72° 72.25°
Seat Angle, effective 73.5° 73.5° 73.5° 73.5° 73.5° 73.5° 73.5°
Seat Angle, real
Top Tube Length 544 mm 561 mm 569 mm 577 mm 585 mm 610 mm 620 mm
Top Tube Length (horizontal)
Head Tube Length 110 mm 119 mm 137 mm 122 mm 143 mm 166 mm 189 mm
Seat Tube Length 432 mm 462 mm 492 mm 522 mm 552 mm 582 mm 612 mm
Standover Height 725 mm 751 mm 781 mm 808 mm 834 mm 859 mm 881 mm
Chainstay Length 425 mm 425 mm 425 mm 440 mm 440 mm 440 mm 440 mm
Wheelbase 1.023 mm 1.034 mm 1.043 mm 1.053 mm 1.059 mm 1.082 mm 1.090 mm
Bottom Bracket Drop
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear) 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm
Travel (front) 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm
