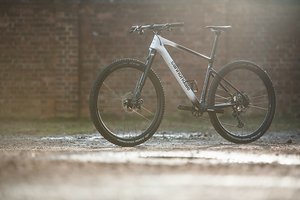

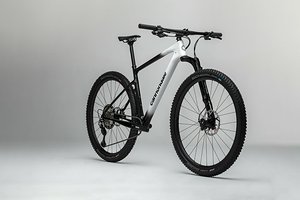

Cannondale Scalpel HT 100 (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Cannondale Scalpel HT 100 (2022) | Cannondale Scalpel HT 100 (2022) | Cannondale Scalpel HT 100 (2022) | Cannondale Scalpel HT 100 (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 410 mm | 430 mm | 450 mm | 470 mm |
| Stack | 602 mm | 612 mm | 623 mm | 635 mm |
| STR | 1,47 | 1,42 | 1,38 | 1,35 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 67° | 67° | 67° | 67° |
| Seat Angle, effective | 75° | 75° | 75° | 75° |
| Seat Angle, real | 73.2° | 74° | 74.6° | 75° |
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 571 mm | 594 mm | 617 mm | 640 mm |
| Head Tube Length | 99 mm | 110 mm | 122 mm | 135 mm |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Standover Height | 748 mm | 785 mm | 814 mm | 850 mm |
| Chainstay Length | 430 mm | 435 mm | 440 mm | 445 mm |
| Wheelbase | 1.124 mm | 1.154 mm | 1.183 mm | 1.214 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Fork installation height | ||||
| Fork offset | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | ||||
| Travel (rear) | ||||
| Travel (front) | 100 mm | 100 mm | 100 mm | 100 mm |
