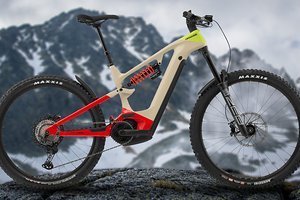

Cannondale Moterra Carbon LT Neo (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Cannondale Moterra Carbon LT Neo (2022) | Cannondale Moterra Carbon LT Neo (2022) | Cannondale Moterra Carbon LT Neo (2022) | Cannondale Moterra Carbon LT Neo (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 | Mullet 29/27,5 | Mullet 29/27,5 | Mullet 29/27,5 |
| Reach | 426 mm | 446 mm | 476 mm | 511 mm |
| Stack | 623 mm | 633 mm | 642 mm | 651 mm |
| STR | 1.46 | 1.42 | 1.35 | 1.27 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 755 mm | 774 mm | 799 mm | 828 mm |
| Frame RAAD | 34.4° | 35.2° | 36.6° | 38.1° |
| Front-Center | 766 mm | 798 mm | 824 mm | 863 mm |
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle, effective | 76.5° | 76.5° | 76.5° | 76.5° |
| Seat Angle, real | 69.6° | 69.6° | 69.6° | 69.6° |
| Top Tube Length | 540 mm | 555 mm | 585 mm | 621 mm |
| Top Tube Length (horizontal) | 580 mm | 602 mm | 634 mm | 671 mm |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Seat Tube Length | 400 mm | 438 mm | 460 mm | 498 mm |
| Standover Height | 763 mm | 763 mm | 767 mm | 777 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1,217 mm | 1,242 mm | 1,278 mm | 1,315 mm |
| FC2RC | 1.69 | 1.75 | 1.83 | 1.91 |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Bottom Bracket Height | 356 mm | 356 mm | 356 mm | 356 mm |
| Fork installation height | ||||
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm |
| Travel (rear) | 165 mm | 165 mm | 165 mm | 165 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm | 170 mm |
