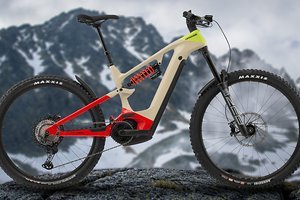

Cannondale Moterra Carbon Alloy (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Cannondale Moterra Carbon Alloy (2022) | Cannondale Moterra Carbon Alloy (2022) | Cannondale Moterra Carbon Alloy (2022) | Cannondale Moterra Carbon Alloy (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 | 29″ | 29″ | 29″ |
| Reach | 428 mm | 455 mm | 475 mm | 510 mm |
| Stack | 618 mm | 631 mm | 641 mm | 650 mm |
| STR | 1.44 | 1.39 | 1.35 | 1.27 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 752 mm | 778 mm | 798 mm | 826 mm |
| Frame RAAD | 34.7° | 35.8° | 36.5° | 38.1° |
| Front-Center | 745 mm | 767 mm | 796 mm | 835 mm |
| Head Angle | 65° | 65° | 65° | 65° |
| Seat Angle, effective | 77° | 77° | 77° | 77° |
| Seat Angle, real | 69.8° | 69.8° | 69.8° | 69.8° |
| Top Tube Length | 539 mm | 559 mm | 586 mm | 624 mm |
| Top Tube Length (horizontal) | 583 mm | 608 mm | 635 mm | 672 mm |
| Head Tube Length | 115 mm | 115 mm | 125 mm | 135 mm |
| Seat Tube Length | 400 mm | 438 mm | 460 mm | 498 mm |
| Standover Height | 754 mm | 754 mm | 763 mm | 770 mm |
| Chainstay Length | 452 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1,196 mm | 1,220 mm | 1,249 mm | 1,288 mm |
| FC2RC | 1.65 | 1.68 | 1.75 | 1.83 |
| Bottom Bracket Drop | 18 mm | 30 mm | 30 mm | 30 mm |
| Bottom Bracket Height | 341 mm | 350 mm | 350 mm | 350 mm |
| Fork installation height | ||||
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 121 mm | 121 mm | 121 mm |
| Travel (rear) | 150 mm | 150 mm | 150 mm | 150 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm |
