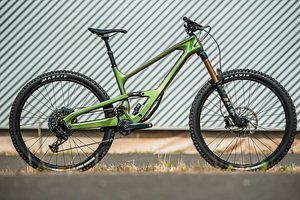

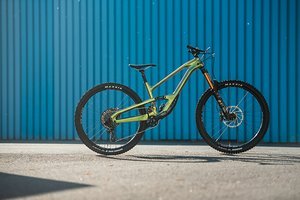

Cannondale Jekyll (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Cannondale Jekyll (2022) | Cannondale Jekyll (2022) | Cannondale Jekyll (2022) | Cannondale Jekyll (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 425 mm | 450 mm | 475 mm | 510 mm |
| Stack | 625 mm | 634 mm | 643 mm | 652 mm |
| STR | 1,47 | 1,41 | 1,35 | 1,28 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle, effective | 77.5° | 77.5° | 77.5° | 77.5° |
| Seat Angle, real | ||||
| Top Tube Length | 541 mm | 569 mm | 588 mm | 627 mm |
| Top Tube Length (horizontal) | 569 mm | 608 mm | 623 mm | 660 mm |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Seat Tube Length | 390 mm | 410 mm | 445 mm | 500 mm |
| Standover Height | ||||
| Chainstay Length | 430 mm | 435 mm | 442 mm | 450 mm |
| Wheelbase | 1.193 mm | 1.227 mm | 1.264 mm | 1.311 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Fork installation height | ||||
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork caster | ||||
| Travel (rear) | 165 mm | 165 mm | 165 mm | 165 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm | 170 mm |
