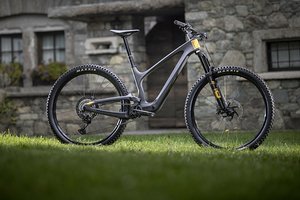

Bold Linkin 150 (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Bold Linkin 150 (2022) Bold Linkin 150 (2022) Bold Linkin 150 (2022) Bold Linkin 150 (2022)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 425 mm 425 mm 460 mm 460 mm 490 mm 490 mm 520 mm 520 mm
Stack 604 mm 604 mm 617 mm 617 mm 631 mm 631 mm 644 mm 644 mm
STR 1,42 1,42 1,34 1,34 1,29 1,29 1,24 1,24
Reach+
Stack+
Front-Center
Head Angle 65.6° 64.2° 65.6° 64.2° 65.6° 64.2° 65.6° 64.2°
Seat Angle, effective 78.4° 78.4° 77.4° 77.4° 77.4° 77.4° 77.4° 77.4°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 546.8 mm 546.8 mm 595.9 mm 595.9 mm 629 mm 629 mm 662.1 mm 662.1 mm
Head Tube Length 90 mm 90 mm 105 mm 105 mm 120 mm 120 mm 135 mm 135 mm
Seat Tube Length 365 mm 365 mm 395 mm 395 mm 425 mm 425 mm 455 mm 455 mm
Standover Height 683 mm 683 mm 715 mm 715 mm 740 mm 740 mm 766 mm 766 mm
Chainstay Length 434 mm 434 mm 434 mm 434 mm 434 mm 434 mm 434 mm 434 mm
Wheelbase 1.175 mm 1.175 mm 1.216 mm 1.216 mm 1.253 mm 1.253 mm 1.289 mm 1.289 mm
Bottom Bracket Drop 27 mm 35 mm 27 mm 35 mm 27 mm 35 mm 27 mm 35 mm
Bottom Bracket Height 348 mm 340 mm 348 mm 340 mm 348 mm 340 mm 348 mm 340 mm
Fork installation height 561 mm 561 mm 561 mm 561 mm 561 mm 561 mm 561 mm 561 mm
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
Fork caster
Travel (rear) 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm
Travel (front) 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm
