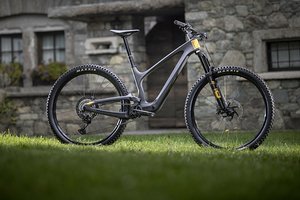

Bold Linkin 135 (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Bold Linkin 135 (2022) Bold Linkin 135 (2022) Bold Linkin 135 (2022) Bold Linkin 135 (2022)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 425 mm 425 mm 460 mm 460 mm 490 mm 490 mm 520 mm 520 mm
Stack 602 mm 602 mm 616 mm 616 mm 629 mm 629 mm 642 mm 642 mm
STR 1,42 1,42 1,34 1,34 1,28 1,28 1,23 1,23
Reach+
Stack+
Front-Center
Head Angle 65.8° 64.4° 65.8° 64.4° 65.8° 64.4° 65.8° 64.4°
Seat Angle, effective 78.7° 78.7° 77.7° 77.7° 77.7° 77.7° 77.7° 77.7°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 546 mm 546 mm 595 mm 595 mm 628 mm 628 mm 661 mm 661 mm
Head Tube Length 90 mm 90 mm 105 mm 105 mm 120 mm 120 mm 135 mm 135 mm
Seat Tube Length 365 mm 365 mm 395 mm 395 mm 425 mm 425 mm 455 mm 455 mm
Standover Height 675 mm 675 mm 707 mm 707 mm 733 mm 733 mm 760 mm 760 mm
Chainstay Length 434 mm 434 mm 434 mm 434 mm 434 mm 434 mm 434 mm 434 mm
Wheelbase 1.171 mm 1.171 mm 1.213 mm 1.213 mm 1.249 mm 1.249 mm 1.286 mm 1.286 mm
Bottom Bracket Drop 33 mm 41 mm 33 mm 41 mm 33 mm 41 mm 33 mm 41 mm
Bottom Bracket Height 342 mm 334 mm 342 mm 334 mm 342 mm 334 mm 342 mm 334 mm
Fork installation height 551 mm 551 mm 551 mm 551 mm 551 mm 551 mm 551 mm 551 mm
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
Fork caster
Travel (rear) 135 mm 135 mm 135 mm 135 mm 135 mm 135 mm 135 mm 135 mm
Travel (front) 140 mm 140 mm 140 mm 140 mm 140 mm 140 mm 140 mm 140 mm
