Compare these geometries with each other

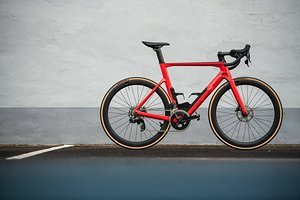

| Modell | BMC Timemachine Road (2022) | BMC Timemachine Road (2022) | BMC Timemachine Road (2022) | BMC Timemachine Road (2022) | BMC Timemachine Road (2022) | BMC Timemachine Road (2022) |
|---|---|---|---|---|---|---|
| Frame Size/Setup | 47 | 51 | 54 | 56 | 58 | 61 |
| Typ | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 373 mm | 381 mm | 390 mm | 395 mm | 405 mm | 413 mm |
| Stack | 496 mm | 520 mm | 540 mm | 555 mm | 574 mm | 598 mm |
| STR | 1,33 | 1,36 | 1,38 | 1,41 | 1,42 | 1,45 |
| Front-Center | 577 mm | 592 mm | 594 mm | 604 mm | 620 mm | 636 mm |
| Head Angle | 71.2° | 71.2° | 72° | 72° | 72° | 72° |
| Seat Angle, effective | ||||||
| Seat Angle, real | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Top Tube Length | ||||||
| Top Tube Length (horizontal) | 520 mm | 535 mm | 550 mm | 560 mm | 575 mm | 590 mm |
| Head Tube Length | 88 mm | 113 mm | 135 mm | 150 mm | 170 mm | 196 mm |
| Seat Tube Length | 480 mm | 518 mm | 548 mm | 568 mm | 588 mm | 611 mm |
| Standover Height | 743 mm | 774 mm | 799 mm | 816 mm | 834 mm | 858 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 975 mm | 991 mm | 994 mm | 1.004 mm | 1.020 mm | 1.036 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom Bracket Height | ||||||
| Fork installation height | 379 mm | 379 mm | 379 mm | 379 mm | 379 mm | 379 mm |
| Fork offset | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Fork caster | ||||||
| Travel (rear) | ||||||
| Travel (front) |
