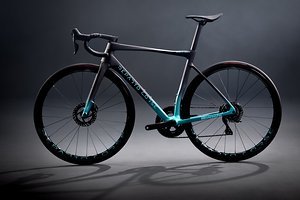

Bianchi Specialissima (2024) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Bianchi Specialissima (2024) Bianchi Specialissima (2024) Bianchi Specialissima (2024) Bianchi Specialissima (2024) Bianchi Specialissima (2024) Bianchi Specialissima (2024)
Frame Size/Setup 47 50 53 55 57 59
Typ Rennrad Rennrad Rennrad Rennrad Rennrad Rennrad
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 379 mm 387 mm 386 mm 391 mm 397 mm 400 mm
Stack 486 mm 494 mm 520 mm 536 mm 552 mm 571 mm
STR 1,28 1,28 1,35 1,37 1,39 1,43
Reach+
Stack+
Front-Center 579 mm 581 mm 582 mm 588 mm 593 mm 603 mm
Head Angle 70.5° 71.5° 72° 72.5° 73° 73°
Seat Angle, effective 74.5° 74.5° 74° 73.5° 73.5° 73°
Seat Angle, real 74.5° 74.5° 74° 73.5° 73.5° 73°
Top Tube Length
Top Tube Length (horizontal) 514 mm 524 mm 535 mm 550 mm 560 mm 575 mm
Head Tube Length 100 mm 105 mm 120 mm 135 mm 150 mm 170 mm
Seat Tube Length 420 mm 450 mm 480 mm 500 mm 520 mm 540 mm
Standover Height
Chainstay Length 410 mm 410 mm 410 mm 410 mm 412 mm 412 mm
Wheelbase 982 mm 983 mm 984 mm 988 mm 996 mm 1.005 mm
Bottom Bracket Drop 58 mm 58 mm 68 mm 68 mm 68 mm 68 mm
Bottom Bracket Height
Fork installation height 368 mm 368 mm 368 mm 368 mm 368 mm 368 mm
Fork offset 43 mm 43 mm 43 mm 43 mm 43 mm 43 mm
Fork caster
Travel (rear)
Travel (front)
