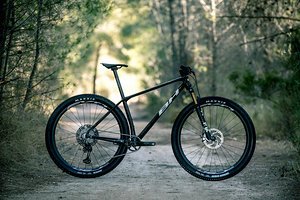

BH Bikes Ultimate Evo (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | BH Bikes Ultimate Evo (2022) | BH Bikes Ultimate Evo (2022) | BH Bikes Ultimate Evo (2022) | BH Bikes Ultimate Evo (2022) |
|---|---|---|---|---|
| Frame Size/Setup | SM | MD | LG | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 402.5 mm | 424.5 mm | 448 mm | 462.5 mm |
| Stack | 605.5 mm | 610.1 mm | 624.1 mm | 648.5 mm |
| STR | 1.50 | 1.44 | 1.39 | 1.40 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 727 mm | 743 mm | 768 mm | 797 mm |
| Frame RAAD | 33.6° | 34.8° | 35.7° | 35.5° |
| Front-Center | ||||
| Head Angle | 68.5° | 68° | 68° | 68° |
| Seat Angle, effective | 74.2° | 74° | 74° | 73.8° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 545 mm |
| Standover Height | ||||
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1,093 mm | 1,114 mm | 1,146 mm | 1,166 mm |
| FC2RC | 1.60 | 1.65 | 1.73 | 1.78 |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | ||||
| Travel (front) | 100 mm | 100 mm | 100 mm | 100 mm |
