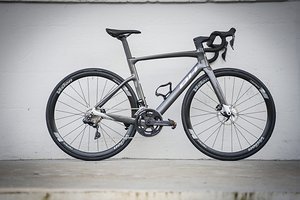

BH Bikes RS 1 (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | BH Bikes RS 1 (2022) | BH Bikes RS 1 (2022) | BH Bikes RS 1 (2022) | BH Bikes RS 1 (2022) | BH Bikes RS 1 (2022) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | SM | MD | LA | XL |
| Typ | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 370 mm | 375 mm | 380 mm | 388 mm | 393 mm |
| Stack | 526 mm | 544 mm | 557 mm | 583 mm | 597 mm |
| STR | 1.42 | 1.45 | 1.47 | 1.50 | 1.52 |
| Reach+ | |||||
| Stack+ | |||||
| Frame RAD | 643 mm | 661 mm | 674 mm | 700 mm | 715 mm |
| Frame RAAD | 35.1° | 34.6° | 34.3° | 33.6° | 33.4° |
| Front-Center | |||||
| Head Angle | 71° | 72° | 72.5° | 73° | 73.5° |
| Seat Angle, effective | |||||
| Seat Angle, real | 74.5° | 74° | 73.5° | 73.5° | 73° |
| Top Tube Length | |||||
| Top Tube Length (horizontal) | 516 mm | 531 mm | 545 mm | 561 mm | 576 mm |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm | 190 mm |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Standover Height | |||||
| Chainstay Length | 412 mm | 412 mm | 415 mm | 415 mm | 418 mm |
| Wheelbase | |||||
| FC2RC | |||||
| Bottom Bracket Drop | |||||
| Bottom Bracket Height | |||||
| Fork installation height | |||||
| Fork offset | |||||
| Trail | |||||
| Travel (rear) | |||||
| Travel (front) |
