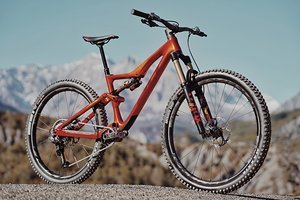

BH Bikes Lynx Trail (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | BH Bikes Lynx Trail (2022) | BH Bikes Lynx Trail (2022) | BH Bikes Lynx Trail (2022) | BH Bikes Lynx Trail (2022) |
|---|---|---|---|---|
| Frame Size/Setup | SM | MD | LA | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 430 mm | 455 mm | 475 mm | 490 mm |
| Stack | 609 mm | 610 mm | 619 mm | 634 mm |
| STR | 1.42 | 1.34 | 1.30 | 1.29 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 746 mm | 761 mm | 780 mm | 801 mm |
| Frame RAAD | 35.2° | 36.7° | 37.5° | 37.7° |
| Front-Center | ||||
| Head Angle | 65° | 65° | 65° | 65° |
| Seat Angle, effective | 77° | 77° | 77° | 77° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 556 mm | 582 mm | 605 mm | 625 mm |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 490 mm |
| Standover Height | ||||
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1,146 mm | 1,169 mm | 1,193 mm | 1,214 mm |
| FC2RC | 1.63 | 1.69 | 1.74 | 1.79 |
| Bottom Bracket Drop | 300 mm | 300 mm | 300 mm | 300 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 150 mm | 150 mm | 150 mm | 150 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm |
