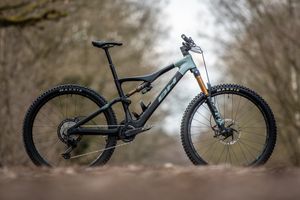

BH Bikes iLynx Trail Carbon (2025) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | BH Bikes iLynx Trail Carbon (2025) | BH Bikes iLynx Trail Carbon (2025) | BH Bikes iLynx Trail Carbon (2025) | BH Bikes iLynx Trail Carbon (2025) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 427 mm | 453 mm | 473 mm | 488 mm |
| Stack | 609 mm | 6,125 mm | 624 mm | 638 mm |
| STR | 1.43 | 13.52 | 1.32 | 1.31 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 744 mm | 6,142 mm | 783 mm | 803 mm |
| Frame RAAD | 35° | 4.2° | 37.2° | 37.4° |
| Front-Center | ||||
| Head Angle | 66° | 66° | 66° | 66° |
| Seat Angle, effective | ||||
| Seat Angle, real | 77.5° | 77.5° | 77.5° | 77.5° |
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 582 mm | 599 mm | 624 mm | 643 mm |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Seat Tube Length | 400 mm | 410 mm | 440 mm | 480 mm |
| Standover Height | ||||
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1,183 mm | 1,210 mm | 1,234 mm | 1,255 mm |
| FC2RC | 1.62 | 1.68 | 1.74 | 1.78 |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Bottom Bracket Height | 342.5 mm | 342.5 mm | 342.5 mm | 342.5 mm |
| Fork installation height | ||||
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 150 mm | 150 mm | 150 mm | 150 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm |
