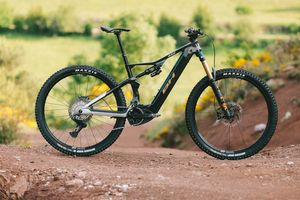

BH Bikes iLynx+ NX Enduro (2026) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | BH Bikes iLynx+ NX Enduro (2026) | BH Bikes iLynx+ NX Enduro (2026) | BH Bikes iLynx+ NX Enduro (2026) | BH Bikes iLynx+ NX Enduro (2026) |
|---|---|---|---|---|
| Frame Size/Setup | SM | MD | LA | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 432 mm | 448 mm | 468 mm | 485 mm |
| Stack | 613 mm | 621 mm | 628 mm | 636 mm |
| STR | 1.42 | 1.39 | 1.34 | 1.31 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 750 mm | 766 mm | 783 mm | 800 mm |
| Frame RAAD | 35.2° | 35.8° | 36.7° | 37.3° |
| Front-Center | 766 mm | 799 mm | 810 mm | 833 mm |
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle, effective | 76° | 76° | 76° | 76° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 583 mm | 601 mm | 623 mm | 644 mm |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 480 mm |
| Standover Height | 756 mm | 772 mm | 789 mm | 814 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1,206 mm | 1,226 mm | 1,250 mm | 1,273 mm |
| FC2RC | 1.74 | 1.79 | 1.84 | 1.89 |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Fork installation height | 588 mm | 588 mm | 588 mm | 588 mm |
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 160 mm | 160 mm | 160 mm | 160 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm | 170 mm |
