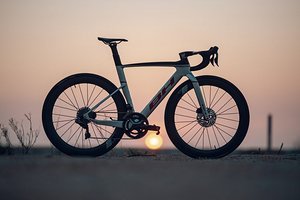

BH Bikes Aerolight (2022) - Geometry

Compare these geometries with each other

Die Tabelle lässt sich verschieben.
Modell BH Bikes Aerolight (2022) BH Bikes Aerolight (2022) BH Bikes Aerolight (2022) BH Bikes Aerolight (2022) BH Bikes Aerolight (2022) BH Bikes Aerolight (2022)
Frame Size/Setup XS S M L XL XXL
Typ Rennrad Rennrad Rennrad Rennrad Rennrad Rennrad
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 368 mm 375 mm 382 mm 390 mm 399 mm 408 mm
Stack 510 mm 523 mm 539 mm 554 mm 576 mm 602 mm
STR 1,39 1,39 1,41 1,42 1,44 1,48
Reach+
Stack+
Front-Center
Head Angle 71° 72° 73° 73° 73° 73°
Seat Angle, effective
Seat Angle, real 74° 74° 73° 73° 73° 73°
Top Tube Length
Top Tube Length (horizontal) 510 mm 525 mm 542 mm 559 mm 575 mm 595 mm
Head Tube Length 110 mm 120 mm 135 mm 150 mm 175 mm 200 mm
Seat Tube Length 555 mm 570 mm 587 mm 605 mm 627 mm 656 mm
Standover Height
Chainstay Length 410 mm 410 mm 410 mm 410 mm 410 mm 415 mm
Wheelbase
Bottom Bracket Drop
Bottom Bracket Height
Fork installation height
Fork offset
Trail
Travel (rear)
Travel (front)
