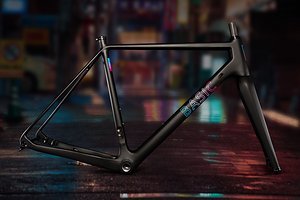

BASIC Bikes Gravel (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell BASIC Bikes Gravel (2021) BASIC Bikes Gravel (2021) BASIC Bikes Gravel (2021) BASIC Bikes Gravel (2021) BASIC Bikes Gravel (2021)
Frame Size/Setup 49 52 54 56 58
Typ Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 355 mm 366 mm 381 mm 392 mm 402 mm
Stack 540 mm 554 mm 570 mm 582 mm 596 mm
STR 1,52 1,51 1,50 1,48 1,48
Reach+
Stack+
Front-Center 580 mm 586 mm 601 mm 620 mm 635 mm
Head Angle 70.5° 71° 71.5° 72° 73°
Seat Angle, effective
Seat Angle, real 73.5° 73.5° 73° 73° 72.5°
Top Tube Length
Top Tube Length (horizontal) 515 mm 535 mm 555.5 mm 575 mm 595 mm
Head Tube Length 120 mm 130 mm 145 mm 160 mm 175 mm
Seat Tube Length 500 mm 520 mm 540 mm 560 mm 580 mm
Standover Height
Chainstay Length 425 mm 425 mm 425 mm 425 mm 425 mm
Wheelbase 996 mm 1.002 mm 1.017 mm 1.039 mm 1.054 mm
Bottom Bracket Drop 65 mm 65 mm 65 mm 65 mm 65 mm
Bottom Bracket Height
Fork installation height 396 mm 396 mm 396 mm 396 mm 396 mm
Fork offset 45 mm 45 mm 45 mm 45 mm 45 mm
Fork caster
Travel (rear)
Travel (front)
