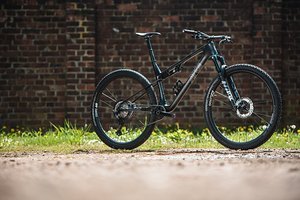

Arc8 Evolve FS – 120 mm (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Arc8 Evolve FS – 120 mm (2022) Arc8 Evolve FS – 120 mm (2022)
Frame Size/Setup M L
Typ Mountainbike Mountainbike
Wheel Size 29″ 29″
Reach 465 mm 495 mm
Stack 588 mm 597 mm
STR 1,26 1,21
Head Angle 65° 65°
Seat Angle, effective
Seat Angle, real 72.7° 72.7°
Top Tube Length 612 mm 635 mm
Top Tube Length (horizontal)
Head Tube Length 100 mm 100 mm
Seat Tube Length 440 mm 480 mm
Standover Height 684 mm 682 mm
Chainstay Length 430 mm 430 mm
Wheelbase 1.200 mm 1.234 mm
Bottom Bracket Drop 35 mm 35 mm
Bottom Bracket Height
Fork installation height 530 mm 530 mm
Fork offset 42 mm 42 mm
Fork caster
Travel (rear) 110 mm 110 mm
Travel (front) 120 mm 120 mm
