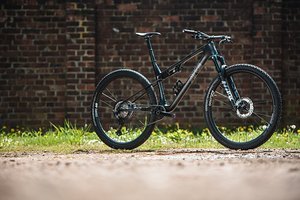

Arc8 Evolve FS – 100 mm (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Arc8 Evolve FS – 100 mm (2022) Arc8 Evolve FS – 100 mm (2022)
Frame Size/Setup M L
Typ Mountainbike Mountainbike
Wheel Size 29″ 29″
Reach 477 mm 507 mm
Stack 579 mm 588 mm
STR 1,21 1,16
Head Angle 66.1° 66.1°
Seat Angle, effective
Seat Angle, real 73.8° 73.8°
Top Tube Length 609 mm 632 mm
Top Tube Length (horizontal)
Head Tube Length 100 mm 100 mm
Seat Tube Length 440 mm 480 mm
Standover Height 674 mm 672 mm
Chainstay Length 430 mm 430 mm
Wheelbase 1.189 mm 1.223 mm
Bottom Bracket Drop 43 mm 43 mm
Bottom Bracket Height
Fork installation height 503 mm 503 mm
Fork offset 42 mm 42 mm
Fork caster
Travel (rear) 100 mm 100 mm
Travel (front) 100 mm 100 mm
