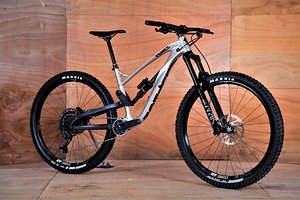

Alutech Fanes 6.1 (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Alutech Fanes 6.1 (2022) | Alutech Fanes 6.1 (2022) | Alutech Fanes 6.1 (2022) | Alutech Fanes 6.1 (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 430 mm | 450 mm | 480 mm | 505 mm |
| Stack | 603 mm | 603 mm | 612 mm | 612 mm |
| STR | 1,40 | 1,34 | 1,28 | 1,21 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 64° | 64° | 64° | 64° |
| Seat Angle, effective | 75.7° | 75.7° | 75.7° | 75.7° |
| Seat Angle, real | 69.8° | 69.8° | 69.8° | 69.8° |
| Top Tube Length | 548 mm | 568 mm | 595 mm | 622 mm |
| Top Tube Length (horizontal) | 571 mm | 601 mm | 622 mm | 653 mm |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 120 mm |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 480 mm |
| Standover Height | 692 mm | 710 mm | 722 mm | 743 mm |
| Chainstay Length | 428.5 mm | 428.5 mm | 428.5 mm | 428.5 mm |
| Wheelbase | 1.182 mm | 1.202 mm | 1.236 mm | 1.269 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Fork installation height | 567 mm | 567 mm | 567 mm | 567 mm |
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork caster | ||||
| Travel (rear) | 170 mm | 170 mm | 170 mm | 170 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm | 170 mm |
