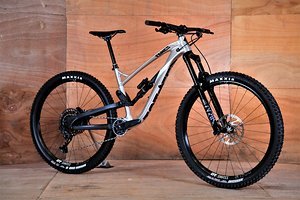

Alutech Fanes 29 (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Alutech Fanes 29 (2022) | Alutech Fanes 29 (2022) | Alutech Fanes 29 (2022) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 440 mm | 470 mm | 500 mm |
| Stack | 624 mm | 634 mm | 642 mm |
| STR | 1,42 | 1,35 | 1,28 |
| Reach+ | |||
| Stack+ | |||
| Front-Center | |||
| Head Angle | 64° | 64° | 64° |
| Seat Angle, effective | 75° | 75° | 75° |
| Seat Angle, real | 71° | 71° | 71° |
| Top Tube Length | 565 mm | 591 mm | 612 mm |
| Top Tube Length (horizontal) | 602 mm | 627 mm | 655 mm |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Standover Height | 700 mm | 705 mm | 715 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1.222 mm | 1.256 mm | 1.290 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Fork installation height | 571 mm | 571 mm | 571 mm |
| Fork offset | 51 mm | 51 mm | 51 mm |
| Fork caster | |||
| Travel (rear) | 170 mm | 170 mm | 170 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm |
