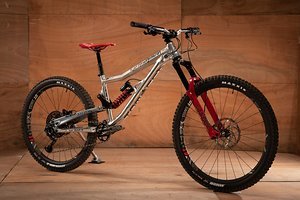

Alutech Armageddon (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Alutech Armageddon (2021) | Alutech Armageddon (2021) |
|---|---|---|
| Frame Size/Setup | 500 kurz | 500 lang |
| Typ | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 | Mullet 29/27,5 |
| Reach | 500 mm | 500 mm |
| Stack | 635 mm | 635 mm |
| STR | 1,27 | 1,27 |
| Reach+ | ||
| Stack+ | ||
| Front-Center | ||
| Head Angle | 57° | 57° |
| Seat Angle, effective | 80.2° | 80.2° |
| Seat Angle, real | 75.7° | 75.7° |
| Top Tube Length | ||
| Top Tube Length (horizontal) | ||
| Head Tube Length | ||
| Seat Tube Length | 410 mm | 410 mm |
| Standover Height | ||
| Chainstay Length | 428.5 mm | 441 mm |
| Wheelbase | 1.356 mm | 1.369 mm |
| Bottom Bracket Drop | -20.1 mm | -20.1 mm |
| Bottom Bracket Height | ||
| Fork installation height | ||
| Fork offset | ||
| Fork caster | ||
| Travel (rear) | 160 mm | 160 mm |
| Travel (front) | 170 mm | 170 mm |
