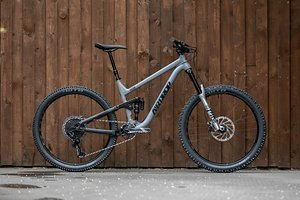

Airdrop Filter (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Airdrop Filter (2022) Airdrop Filter (2022) Airdrop Filter (2022) Airdrop Filter (2022)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 27,5″ / 650B 27,5″ / 650B 27,5″ / 650B 27,5″ / 650B
Reach 425 mm 455 mm 475 mm 500 mm
Stack 605.3 mm 609.7 mm 614.5 mm 618.8 mm
STR 1,42 1,34 1,29 1,24
Front-Center
Head Angle 65° 65° 65° 65°
Seat Angle, effective 78.1° 78.1° 78.1° 78.1°
Seat Angle, real 74.5° 74.5° 74.5° 74.5°
Top Tube Length
Top Tube Length (horizontal)
Head Tube Length 115 mm 120 mm 125 mm 130 mm
Seat Tube Length 400 mm 425 mm 450 mm 480 mm
Standover Height
Chainstay Length 430 mm 430 mm 430 mm 430 mm
Wheelbase 1.167 mm 1.199 mm 1.221 mm 1.248 mm
Bottom Bracket Drop 22 mm 22 mm 22 mm 22 mm
Bottom Bracket Height
Fork installation height
Fork offset 37 mm 37 mm 37 mm 37 mm
Fork caster
Travel (rear)
Travel (front)
